15 MMSCDF Nitrogen Rejection Processing Plant (Eagle Ford)

Posted on by fandc_wpadmin
23
Feb

Project Details

LOCATION:

Edna, TX

PRODUCTION:

15 MMSCDF of gas containing N2, H2S and CO2

PROJECT TYPE

F&C provided discipline engineering design, detailed construction drawings and construction supervision

NOTE: Foundations include: Octagonal, Spread, Mat, Waffle Slab, and drilled shafts to depths 12-40 ft. below grade. Dynamic Analysis on compressor block foundations was conducted.

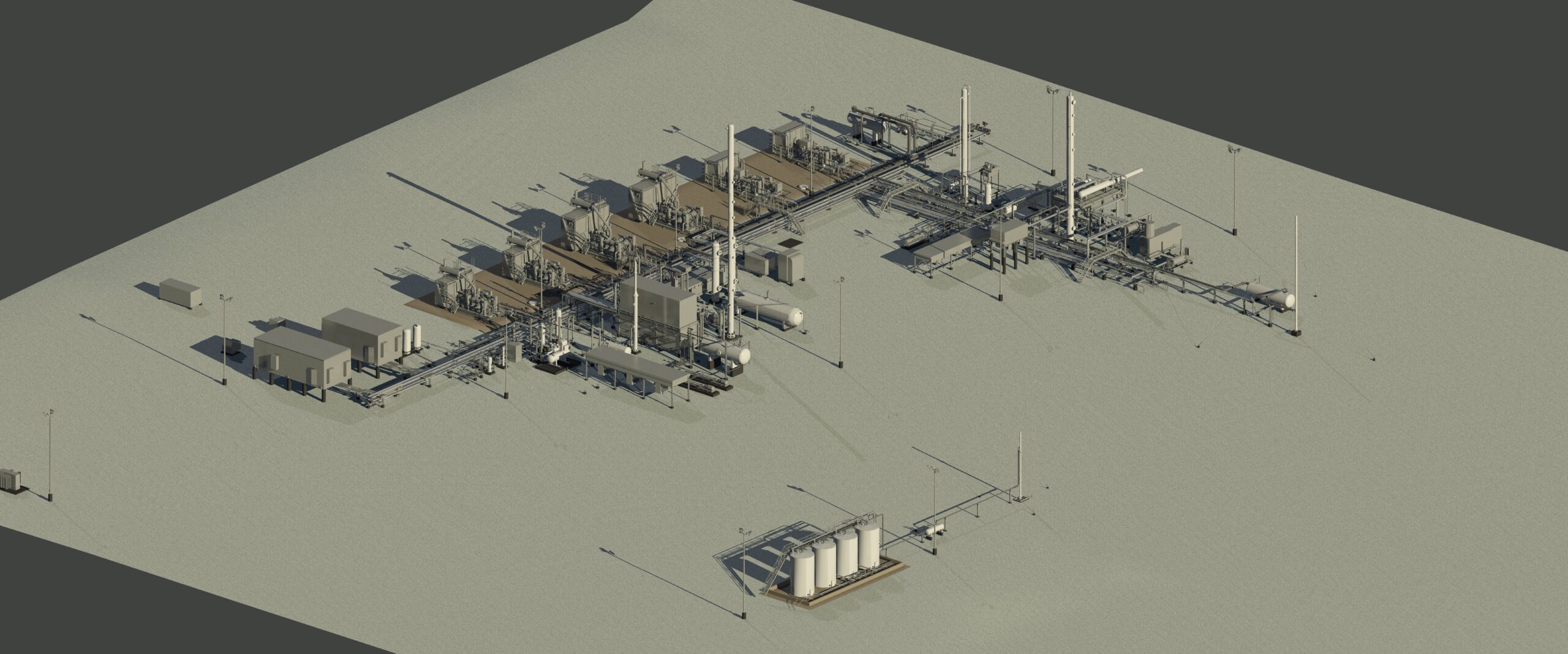

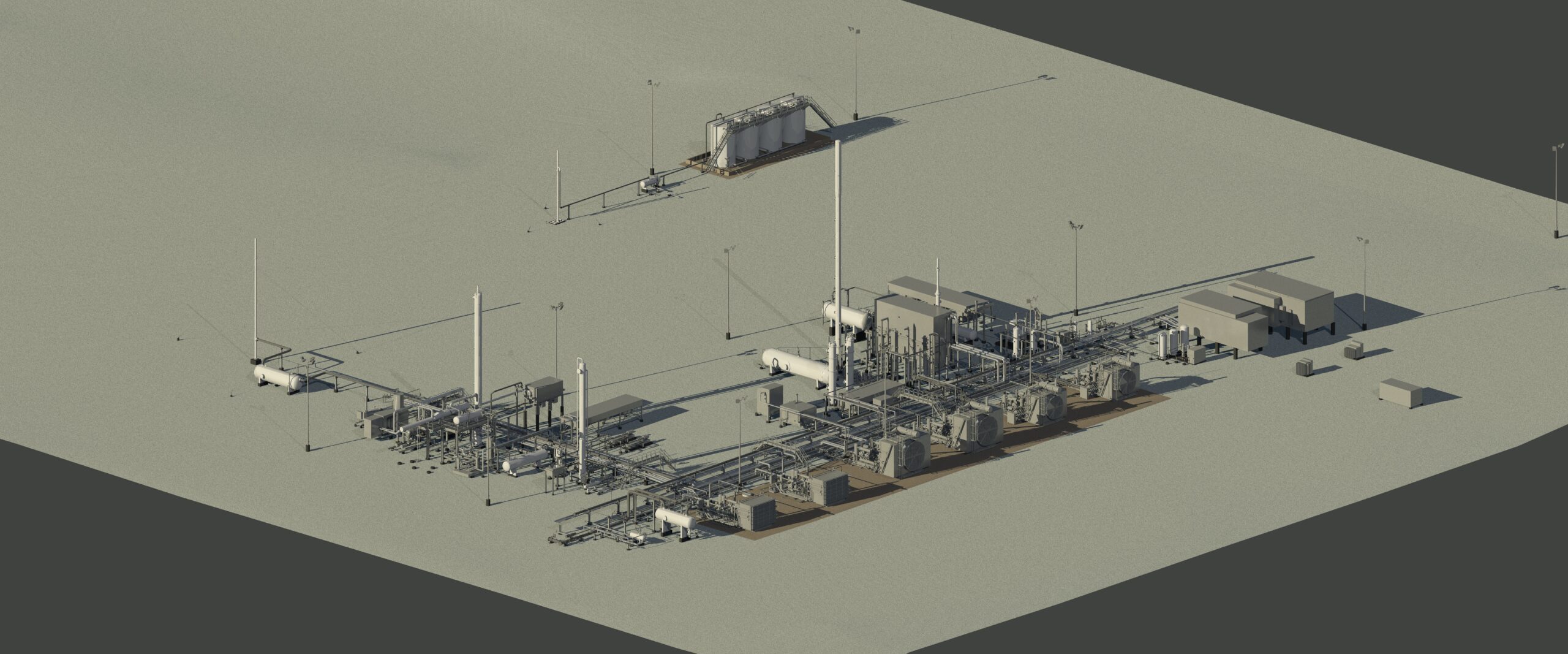

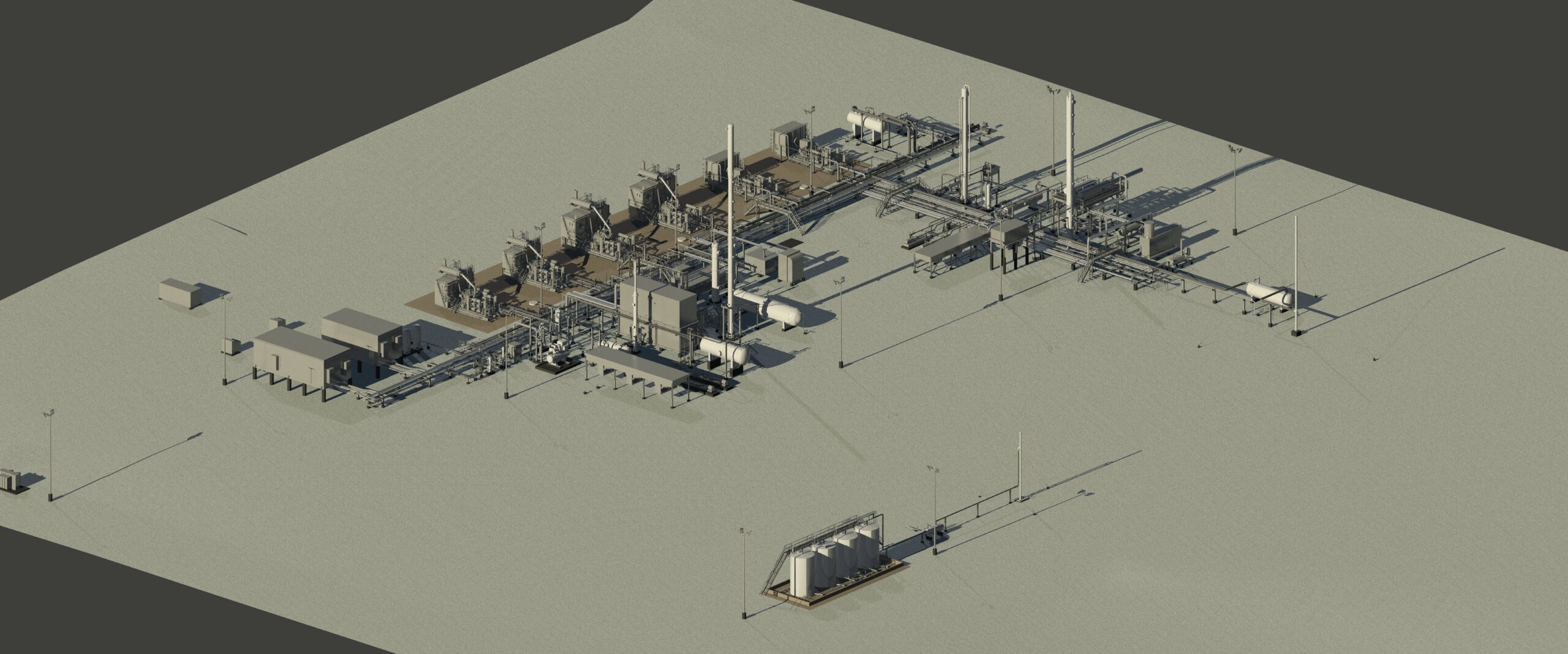

Equipment Included:

  • Inlet Compression
  • Amine Plant
  • Acid Gas Compression
  • Mole Sieve dehydration
  • Nitrogen Rejection Unit
  • Refrigeration System
  • Demethanizer
  • Residue Compression
  • Thermal Oxidizer
  • Pipe Line Pumps
  • Storage
  • Flare
  • Tankage
  • Motor Control Center
  • Control Room
